Zhongtuo Roll Forming Machinery Co., ltd

HG165 big diameter tube mill from carbon steel
HG165 big diameter tube mill from carbon steel
HG165 big diameter tube mill from carbon steel
HG165 big diameter tube mill from carbon steel
HG165 big diameter tube mill from carbon steel

HG165 big diameter tube mill from carbon steel

Unit Price: USD 290000 - 350000 / Bag/Bags
Incoterm: FOB
Min. Order: 1
Delivery Time: 60 Days

Contact Now

Additional Info

    Packaging: nude packing

    Productivity: 60m/min

    Brand: Zhongtuo

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO, CE9001

Product Description

HG 165 big diameter tube mill from carbon steel
The mill is intended for manufacturing of round pipe of Φ76 mm-Φ168 mm with thickness of 2.0 mm–5.0 mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

HG165 pipe machine

II. Tube mill for making pipe

Coil→→ decoilerr →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table→→straightening

III. Basic conditions:

a) Steel Pipe Specification

1. Round Pipe diameter: Φ76 –Φ168mm

2. Square pipe: 60X60mm –125X125mm

Rectangle Pipe: 80X40-100X50mm

Pipe Thickness: 2.0 – 5.0mm

3. Pipe Length: 6.0m – 12.0m

IV. Equipment makeup and main parameters of single unit:

1. Hydraulic Single-arbor uncoiler with peeler

Mandrel expansion by hydraulic, Mandrel position rotation shall be manual, Pneumatic brake.

2. Five-roll Flattener

There are pairs of nipping and sending roller. Flatten rolls are arranged for two top and three below. Nipping and sending is pressured by hydraulic cylinder, flatter roll motor is cogged by worm wheel and worm screw reduced speed, the worm screws in front and one in back can come true be in-phase by sleeve connecting, which can ensure top leveling roll and under leveling roll be parallel, thereby which reach in the intention of flatten.


3. Shearing & butt welding machine

3.1 Hydraulic shearing parameters machine: Cutting by hydraulic system

4. 3. Horizontal spiral accumulator

The accumulator is composed by the following elements: Low bracket, Low bracket, Revolver, 7 rollers Flattening unit, 2 rollers feeding, and coil feeding system

Feeding speed: Max.200m/min

accmulator

5. Forming & sizing section

5.1 Forming mill gearbox, universal joint

Mill entry flattener by up-horizontal roll and below-horizontal roll, one positive five-roll flattener, one pair of feeding vertical roll.

Forming mill consists of: Driven stand, Side roll stand: 8 sets(Vertical) and Horizontal roller frame with worm gear & shaft. adjust up and down at same time and level.

HG165 tube mill

6. Welding section

6.1 Welding section consist of: Seam guide unit: 1 set, Squeeze stand: 4 rollers(Φ 90mm), de-burr frame: 1 set (2 heads and horizontal unit for seam ironing: 2 rollers

6.2 Cooling section of Cooling trough: 1 set of 4.0 m

6.3 Solid state High frequency welder(GGP400KW)


Tank circuit output mode: no welding transformer output, secondary resonance with water-water cooler for welder

7. CNC flying friction saw


Saw carriage travel: Rack and pinion with gear lath

Motor for travel: DC 37KW

Motor for sawing: AC 90KW

Length Tolerance: 0-6mm

welded system


8. Run-out table

8.1 Run-out system consists of: Roller conveyer 18 meter (including packing box) pneumatically

9. Electric Control System

Horizontal spiral accumulator AC driver.

Double DC drive and control for forming and sizing mill of DC drive,

Main DC drive panel control(instrument etc.)

Mill operation panel (speed adjustment, control etc).

9.3 Flying cut-off control system

Saw carriage drive by DC motor 37KW,

LCD operation pane

(length and batch setting ,control instrument etc).

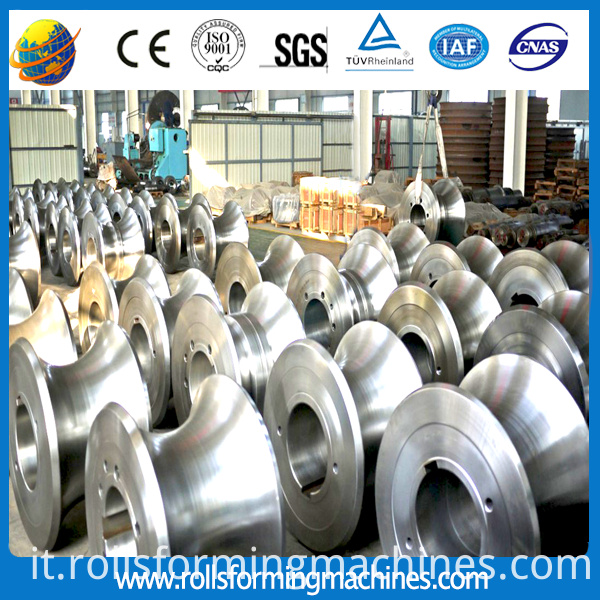

10. Rollers

10.1 Forming and sizing Rollers material

Material: Cr12

Hardness: 60 HRC +/-2

10.2 Welding rollers material

pipe machine mould


Looking for ideal Tube Mill Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Carbon Steel Pipe Machine are quality guaranteed. We are China Origin Factory of High Quality Tube Maker. If you have any question, please feel free to contact us.
