Light duty cable tray machine with cable extension
Light duty cable tray machine with cable extension
Light duty cable tray machine with cable extension
Light duty cable tray machine with cable extension
Light duty cable tray machine with cable extension

Light duty cable tray machine with cable extension

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

Light duty cable tray machine with cable extension

Light duty cable tray machine with cable extension making also support the width of cable from 50 to 200 supports the material thickness from 0.8 to 1.5mm. This one cable tray could either make the cable tray machine and the cover machine. For the sizes changing, you need to know how to change the spacer and punching molds. But for the shearing system, you do not need to do any type adjustment.

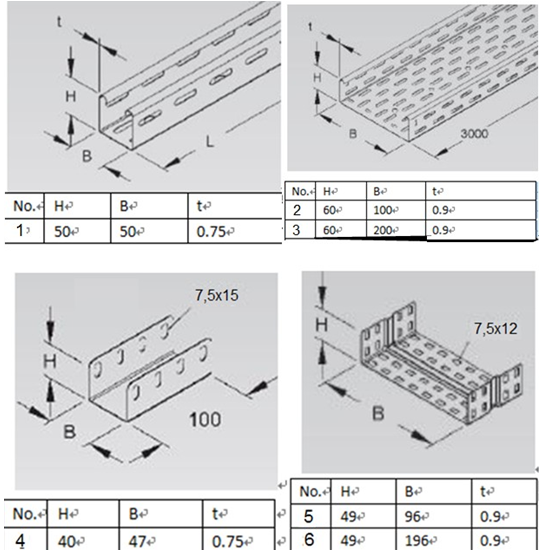

Here are some sizes and drawing of cable tray for your reference:

Cable tray: C50x50x3000; C60x100x3000; C60x200x3000mm;

Cable tray extension: U40x47x100; U49x96x100; U49x196x100 mm;

1

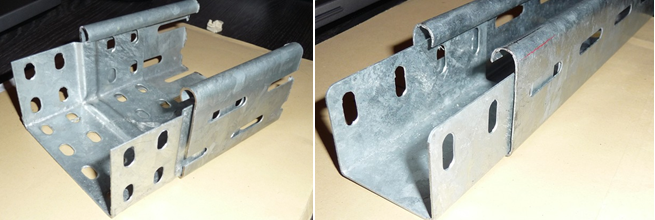

The following pictures are about the cable tray installation pictures for your reference:

2

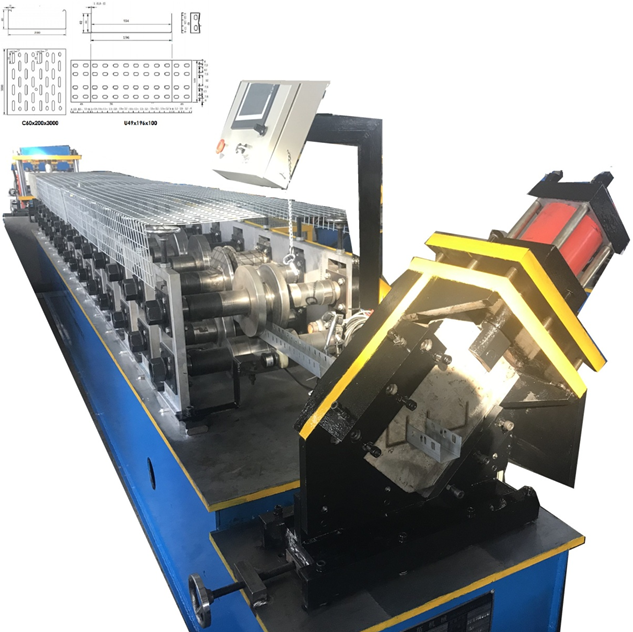

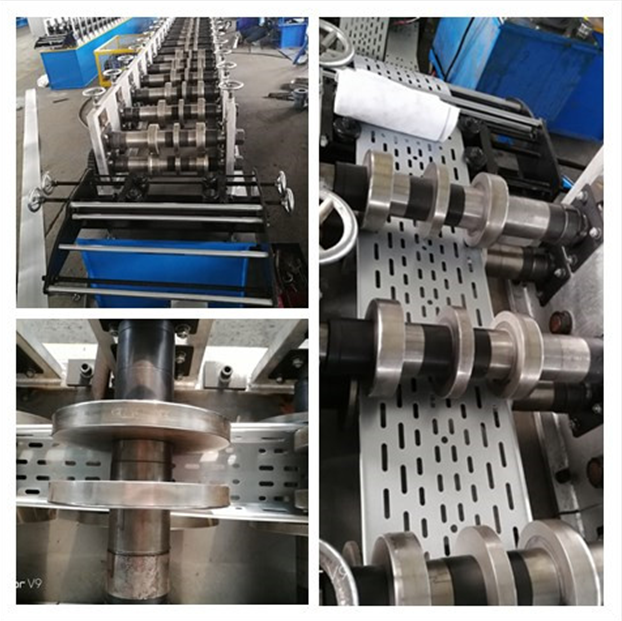

The cable tray machine we design like the following pictures:

3

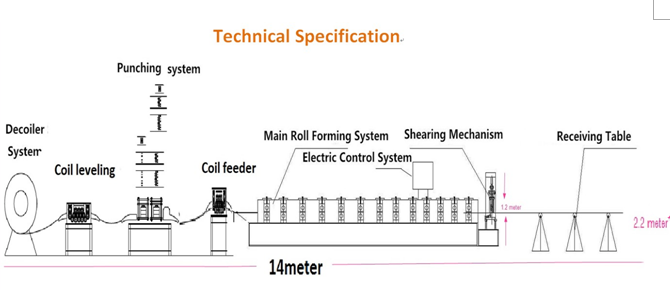

The cable tray machine working flow:
