Steel Slitting Machine/Steel Coil Automatic Slitting Machine-for construction material
General introduction about Steel Slitting Machine
Steel Slitting Machine is also called Slitting Line Machine.Slitting line machine can do uncoiling, slitting and recoiling works, make coil steel to any desired width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, Etc. It mainly used in cold or hot rolled, galvanized iron,PPGI,stainless steel,carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.This line can be adjusted to do recoiling or dividing work to meet customer`s demand.
Features of Steel Slitting Machine
1.tidy recoiling
2.convenient to operate
3.accurate precision of shearing
4. professional design and good to use
Parameter of steel Slitting Machine
Raw material: steel
Thickness: 0.5--2.5mm
Width: 900-1250mm
Inner diameter: 508mmmm
Max out diameter: 1600mm
Max weight: 6T
Width tolerance: 0.5mm
Min slitting width: 60mm

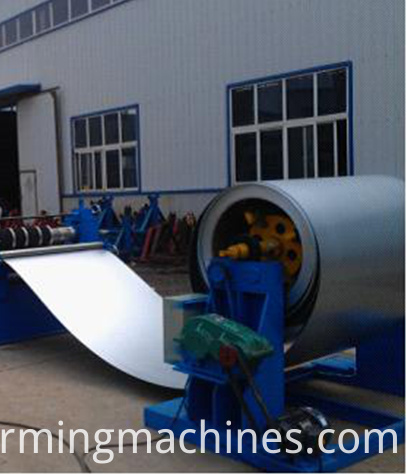

Decoiler
Max coil weight: 5 T
Inner diameter: 508mm
Max out diameter: 1200mm
Hydraulic station power: 4Kw
Decoiler speed: 0-20m/min

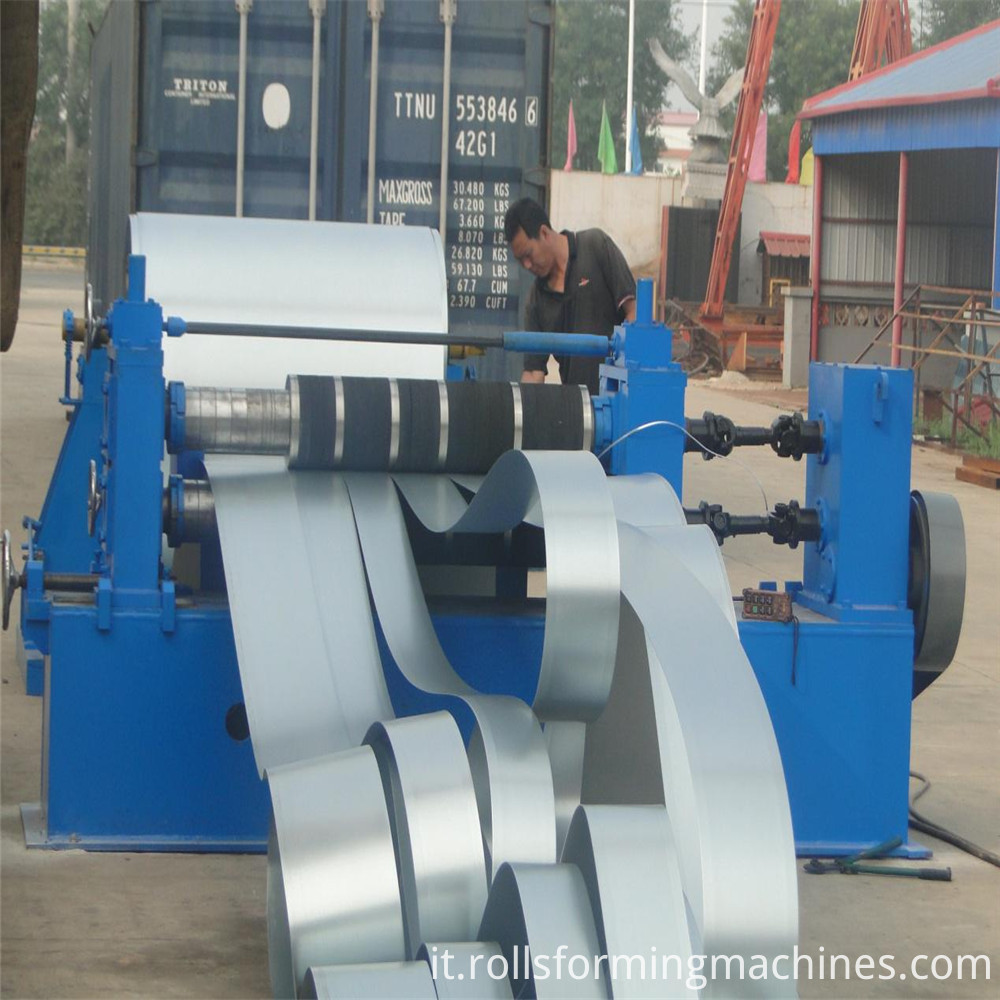

Slitting device
Slitting speed: 0-15mm/min
Driving motor: 11 Kw
Slitting shaft diameter: Ф120mm
Shearing blade: 12 pieces
Max slitting pieces: 10 pieces
Min slitting width: 60mm
Shearing blade material: 12CrMoV
Pinching roller: 2 couples
Recoiler
Max coil weight: 5 T
Inner diameter: 508/610mm
Max out diameter: 1500mm
Recoiler motor: 15kw
Hydraulic station power: 4kw
Recoiler speed: 0-15m/min
Motor: 35kw
Voltage: 380V/3ph/50Hz
Weight: 14000kg(the exactly weight depend on the machine)
Size: 15 * 4 *1.8 m
Electrical control system
a. The Brand of display: adopting 5.7 inch Tai Da DVP14ES
b. The main computer (PLC):adopting ENC-1-1-1t-24 of North KoreaHydraulic system.
a. Taiwan hydraulic system
b. Motor:3KW
Hydraulic system
a. Adopting advanced hydraulic system of Tai Wan
b. Power:3KW
Looking for ideal Steel Slitting Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic Slitter Machine Steel Slitting Machine are quality guaranteed. We are China Origin Factory of
Steel Slitting Line Machine. If you have any question, please feel free to contact us.
