    Name: Roller Shutter Door Forming Line

    Forming Speed: 10-15m/min

    Step Of Rollers: 14steps

    Motor Power: 5.5kw

Additional Info

    Packaging: As Customer's Requirement

    Productivity: 10-15m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: Made in China

    Supply Ability: 20set per Month

    Certificate: ET, ISO9001

    HS Code: 84552200

    Port: Tianjin,Qingdao,Shanghai

Product Description

New Quality Rolling Shutter Machine


Rolling shutters and rolling grilles require very little headroom above the structural opening. They roll up compactly behind the lintel. No valuable hall space is lost at the sides or ceiling. ZTRFM is one of the best professional factories in China.in fact, we can supply different kinds of roll forming machines for different shutter doors. If you have own door design, show it to us please. And perfect machine proposal can be offered by our engineer. if you have any idea about your new project, we would like to offer some professional advices.

Above all, Rolling shutter door is produced by rolling shutter making machine and are used for parking door and home doors and shops front show and garages, etc. they are very strong and safe to the property.Therefore, The door-rolling shutter provides adequate protection and safety against thefts and fire. These doors are stronger if use enough steel thickness.


Quickly informations:

1.Main forming unit driving motor power:5.5kw

2.Material of rollers:45#steel,quenched HRC58-62,coated with rigid chrome.

3.Material of roller shafts:45#steel

4.Step of rollers:14steps

5.Forming speed:10-15m/min

6.Thickness to be rolled:0.5-1.5mm

Components of Line

1. Decoiler

garage door roll forming

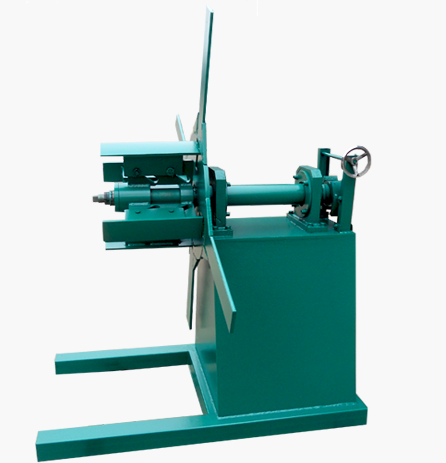

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

2. Entry leveling and punching dots

garage door roll forming

This part will level coil to make sure it is neat clean and straight.

3. Roll Forming Machine

garage door roll forming

garage door roll forming

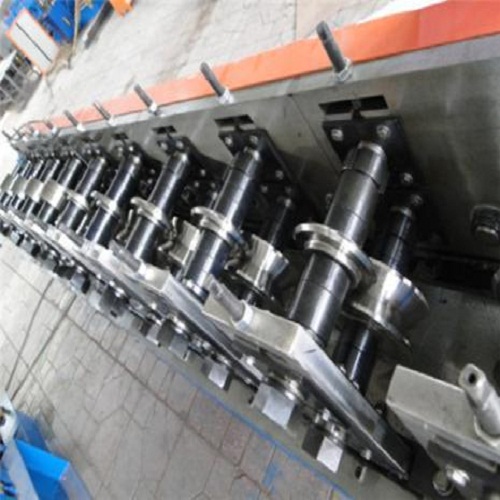

a. Number of forming steps: 14 stations

b. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: ¢56mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed: 10-15m/min
f. Motor:5.5kw

g.Voltage:380v, 50Hz,3 phase

h. Structure: independent stand

4. Shearing system

garage door roll forming


garage door roll forming

Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5. Hydraulic station

garage door roll forming

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa

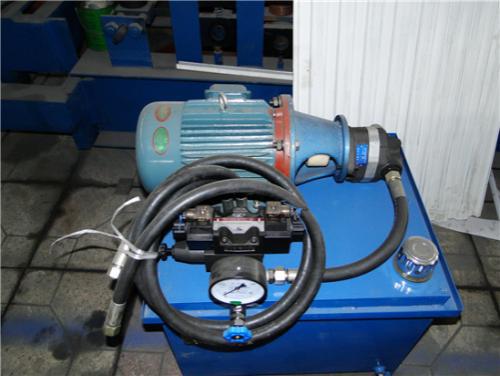

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

6. PLC station

garage door roll forming

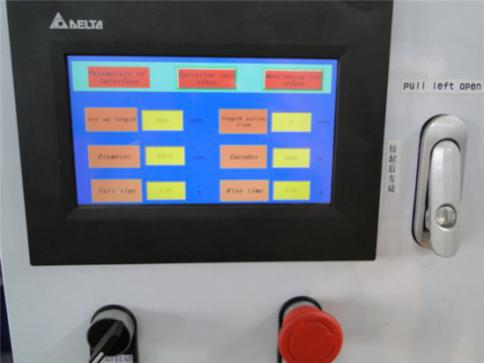

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.


ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.
