Shutter Slat Roll Forming Machine

    Tipo di pagamento: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB,CFR,CIF,FCA
    Quantità di ordine minimo: 1 Set/Sets
    Termine di consegna: 30 giorni
Informazioni basilari

Modello: zt-005-207

Materiale: Acciaio

Stile: europeo

Aprire lo stile: Automatico

Certificazione: ISO9001, CE

Finitura superficiale: Finito

Funzione speciale: Sicurezza

Posizione: Box auto

Machine Size: 4000*500*700mm

Drive: Gear

Shalf Material: 45#steel

Shalf Diameter: ¢56mm

Power: 5.5kw

Roller Station: 14steps

Speed: 10-15m/min

Roller Material: Bearing Steel With Quenched Treatme

Additional Info

Pacchetto: As Customer's Requirement

produttività: 10-15m/min

marchio: ZHONGTUO

Trasporti: Ocean,Land

Luogo di origine: Made in China

Abilità del rifornimento: 20set per Month

Certificati : ET, ISO9001

Descrizione del prodotto

Shutter Slat Roll Forming Machine

Product Destription

Shutter Slat Roll Forming Machine is a special type of roll forming machine, producing shutter door panel or slat standard and elegant, that shows good performance and using trends in the future sufficiently.This kind of roll forming machine is widely used for making various metal,wall panels and roof panels for steel constructions, steel structure projects and containment systems etc. Slat Shutter Roller Door Forming Machine is an advanced-technology and practical usable system.

Main Techinal Data

1.Mounting dimension:4000*500*700mm

2.Total weight:about 3ton

3.Control system:computer control

4.Main forming unit driving motor power:5.5kw

5.Material of rollers:bearing steel with quenched treatme

6.Material of roller shafts:45#steel

7.Step of rollers:14steps

8.Forming speed:10-15m/min

9.Thickness to be rolled:0.5-1.5mm

Components of Line

1. Decoiler

 Slat Shutter Door Roll Forming Machine-decolier

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

2. Entry leveling and punching dots

 Shutter Door Roll Forming Machine-entry leverling

This part will level coil to make sure it is neat clean and straight.

3. Roll forming machine

Salt Door roll forming machine 2

 Shutter Door roll forming machine3

 Shutter Slat Door roll forming mashine1

a. Number of forming steps: 14 stations

b. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: ¢56mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed: 10-15m/min
f. Motor:5.5kw

g.Voltage:380v, 50Hz,3 phase

h. Structure: independent stand

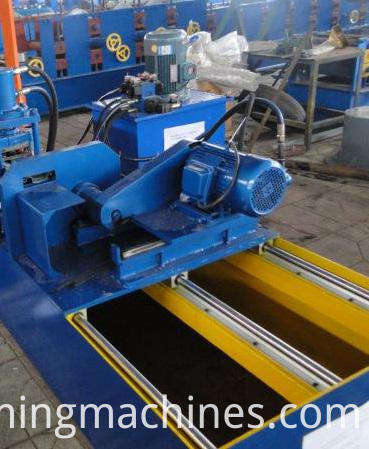

4. Shearing system

 Shutter Door Roll Forming Machine System--shearing system

 Shutter Salt Roll Forming Machine Line--shearing system 2

Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5. Hydraulic station

 Slat Shutter Door Roll Forming Machine--hydraulic station

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

6. PLC station

 Shutter Door Forming Machine System-PLC station

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.
