Zhongtuo Roll Forming Machinery Co., ltd

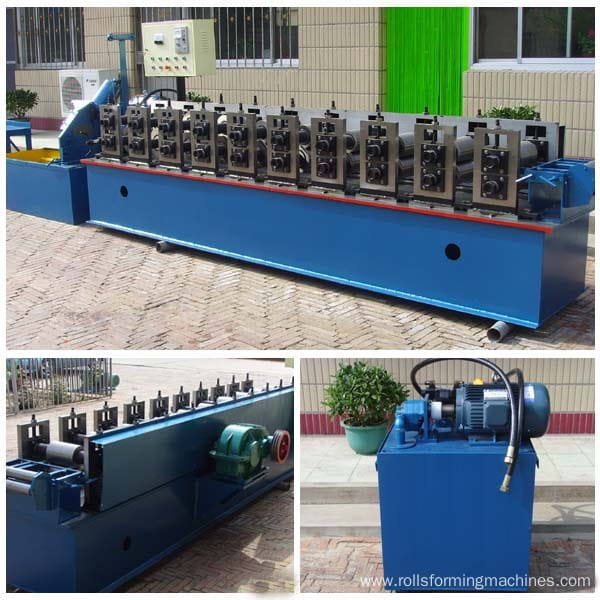

galvanized ceiling wall angle roll forming machine
galvanized ceiling wall angle roll forming machine
galvanized ceiling wall angle roll forming machine
galvanized ceiling wall angle roll forming machine

galvanized ceiling wall angle roll forming machine

Unit Price: USD 19900 - 7900 / Set/Sets
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Angle Light Keel

Additional Info

    Packaging: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with

    Productivity: 30sets/month

    Brand: Zhongtuo

    Place of Origin: China

    Supply Ability: 30sets/month

    Certificate: CE; ISO9001

Product Description

steel profile galvanized ceiling wall angle Roll Forming Machine

Product Description



Machine Description

Quantity

Delivery time

Container Type

Price/ USD

(FOB TIANJIN)

galvanized ceiling wall angle roll forming machine

1 SET

45 working days

after receiving deposit

One 20GP

7900---19900


galvanized ceiling wall angle roll forming machine Process Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving


Product name

corner bead forming line

NO.

Items

Parameters

Remark

1

Suitable Material

Type

GI/PPGI/AL




Thickness

0.40-0.80mm


2

Product

Specifications

Length

Any length




Length Tolerance

±2mm/6m


3

Working Speed

25 m/min

Standard machine

4

Control System

Mitsubishi/Siemens PLC& transducer

Custom

5

Total Power

6KW


6

Total Weight

About 3T

Up to final design



Components of galvanized ceiling wall angle roll forming machine :

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1


Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

1.5T

300mm

450-550mm



Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of lo

cate angle iron.

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

it is working

Feature : Ensure stability , precision and lifetime.

No.

Main parameter of galvanized ceiling wall angle roll forming machine

1

Length of the main part

3000*800*1400 mm

2

Weight of main part

About 3 t

3

Voltage

380V/50HZ3Phase (as customer`s request)

4

Roller fixer

Guide column

5

Frame

Middle plate welded

Memorial arch frame type

6

Frame thickness

25mm

7

Drive mode

Gear or chain

8

Material of rollers

45# steel with tempering

9

Material of shafts

45# steel with tempering

10

Diameter of shafts

φ40mm

11

Number of rollers

10 rollers

14

Main power

3kw (Cycloidal planetary gear speed reducer)

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety

factor.

Blade Material

Cutting system

Cr12 steel with quenched treated 60-62°C

Full automatic

Controlling device

Screen

PLC

Coder


Text screen displayer


Taida DVP14ES from Taiwan


Omron

Hydraulic

Orgin

Power

Advanced hydraulic system from Taiwan

3kw

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Our Services

1. Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th

ings.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information


Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own

factory and also cooperate with several production factories and associated nterprises, concerning with the design,


development and production of cold roll forming machines,material of building. It is located in northwest of CangZh

ou, as a long history of cold roll formingmachine production base. All products comply with international quality stan

dards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,

South America, and Australia and so on.

Packaging & Shipping

FAQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your ma

chines running in order to keep your business running.

3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pi

ck up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the b

roken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor t

o solve the problems,and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.
