Drywall Metal Track Roll Forming Machine
Brief introduction
For interior wall building. Drywall keel is used to make a big room into many small rooms. Normally speaking, U channel or metal track will be used together with C stud as cross light keel. Compared with wood keel, metal U channel has advantage of light weight, easy to install, durable and so on. The width and height are adjustable. Different models for optional: U shape track, C shape stud, V shape keel or W shape keel.
Main elements of Drywall Metal Track Roll Forming Machine
1.Decoiler
2.Main roll forming machine
3.Punching maching
4.Cutting machine
5.PLC control
6.Drywall Metal Tracks Roll Forming Machine Counter
7.Hydraulic station
8.Drywall Metal Tracks Making Machine receiving table
Quickly parameters of Drywall Metal Track Roll Forming Machine
1.Working efficiency:25m/min
2.Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.3-1.2mm
5.Width of material: according to the profile
6. Un-coiler system: 1.5 Ton decoiler
7.Number of rollers: 12 rollers
8.Drywall Metal Track Roll Forming Machine Roller fixer: Memorial Arch
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 50mm
12.Drywall Metal Track Roll Forming Machine Main power: 5.5KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17. Drywall Metal Track Making Machine Frame: 25mm
18.Drive: gear, chain or case of different speeds
19.Punching machine: Gcr12 MoV quenched
20.Control system: Delta of Taiwan.
Light gauge steel is a new building material. With the development of China`s modernization, light steel keel widely used in hotels, airport, railway stations, factories, office buildings, interior decoration, ceiling and so on. Feasure: light weight, high strength, waterproof, shockproof, sound proof, sound absorbing, constant temperature. Short during, simple construction and so on.

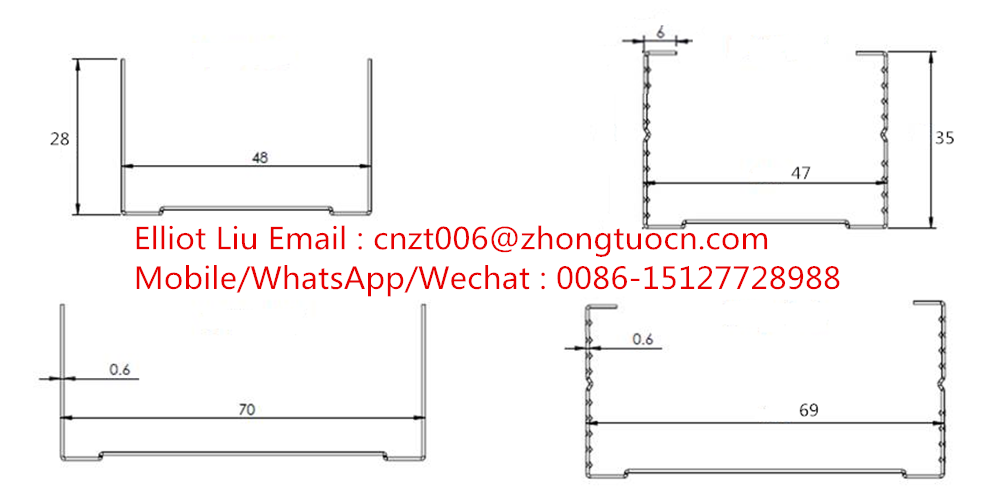

Some OTHER drywall profile for your reference
Looking for ideal Drywall Metal Track Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic Drywall Metal Track Machine are quality guaranteed. We are China Origin Factory of Drywall Metal Track Making Machine. If you have any question, please feel free to contact us.
